Complete STORZ Medical Transmitter Selection Guide

Most healthcare professionals using STORZ Medical shockwave devices never explore beyond their basic transmitter kit. This limits treatment effectiveness and patient outcomes. STORZ Medical provides the industry’s most comprehensive transmitter collection, each engineered for specific clinical applications and tissue types.

Choosing the right transmitter transforms treatment results. The difference between success and disappointment often lies in matching the correct applicator to each patient’s condition. This guide covers every STORZ Medical transmitter available through Vale Medical, helping you maximize your shockwave therapy potential.



Understanding Shockwave Transmitters

Storz Shockwave transmitters deliver pressure waves to targeted tissues through different energy patterns and penetration depths. Each transmitter design affects how energy travels through tissue layers.

The key variables that determine transmitter selection include tissue depth, patient sensitivity, treatment area size, and condition severity. Energy intensity ranges from gentle applications for sensitive areas to high-power delivery for chronic conditions requiring deeper penetration.



Essential Transmitters Every Practice Needs

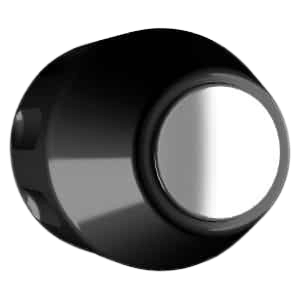

R15 Standard Transmitter – The Foundation

The R15 serves as the cornerstone transmitter for general practice applications. Every STORZ Medical device includes this 15mm diameter applicator as standard equipment.

Healthcare providers rely on the R15 for treating common tendinopathies and trigger points. Its moderate energy output and 30mm penetration depth work effectively for most superficial to mid-level tissue conditions.

• Primary uses: Tendon disorders, trigger point therapy, general musculoskeletal conditions
• Penetration depth: 0-30mm
• Energy intensity: Moderate (6/10)
• Patient tolerance: High for most conditions

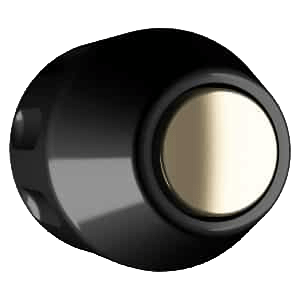

DI15 Deep Impact Transmitter – Maximum Power

When standard energy levels prove insufficient, the DI15 delivers enhanced penetration for stubborn conditions. This gold-tipped transmitter generates significantly more energy than the R15.

The DI15 excels with chronic conditions, larger patients, and deep-seated pathologies requiring aggressive treatment protocols. Athletic populations often respond well to this transmitter’s higher energy output.

• Primary uses: Chronic tendinopathies, deep tissue conditions, athletic applications
• Penetration depth: 0-50mm
• Energy intensity: High (8/10)
• Best for: Treatment-resistant conditions, larger body types

F15 Soft Focus Transmitter – Gentle Care

Sensitive treatment areas require specialized approaches. The F15 white soft-tip transmitter delivers therapeutic energy with minimal discomfort for delicate regions.

This transmitter proves invaluable for cervical spine treatments, TMJ therapy, and patients with heightened pain sensitivity. The soft tip design reduces surface pressure while maintaining therapeutic effectiveness.

• Primary uses: Cervical spine, TMJ disorders, sensitive tissue areas
• Penetration depth: 0-30mm
• Energy intensity: Low (2/10)
• Patient comfort: Excellent for sensitive individuals



Specialized Transmitters for Advanced Applications

C15 CERAma-X Ceramic Transmitter

The ceramic construction of the C15 provides superior energy transmission compared to standard materials. This transmitter delivers intense, focused energy for challenging chronic conditions.

Healthcare providers choose the C15 for patients requiring maximum energy delivery with precise targeting. The ceramic tip enhances energy efficiency while maintaining consistent performance.

• Applications: Chronic pain syndromes, calcific tendinopathies
• Penetration: 0-30mm
• Intensity: Very high (9/10)
• Special feature: Enhanced energy transmission through ceramic technology

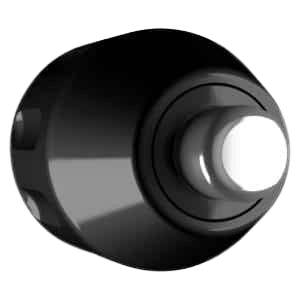

T10 Trigger Point Transmitter

Precise trigger point therapy requires focused energy delivery to small treatment areas. The T10’s narrow 10mm diameter allows accurate targeting of specific muscular trigger points.

This transmitter concentrates energy into tight spaces, making it ideal for treating trigger points between muscle fibres or in anatomically challenging locations.

• Specialty: Precise trigger point therapy
• Size: 10mm diameter for focused treatment
• Depth: 0-40mm penetration
• Precision: Excellent for small target areas

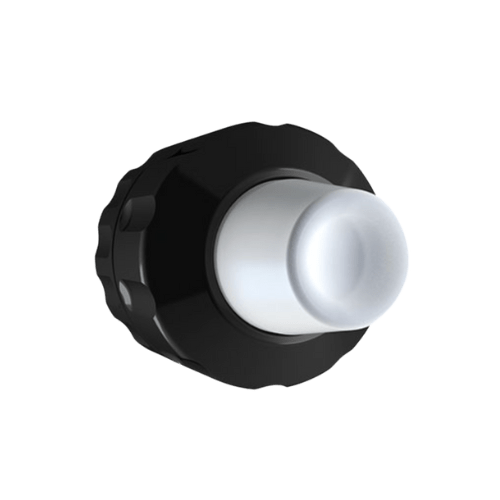

ATLAS Soft Tip Transmitter

The ATLAS features a silicone tip designed for extremely sensitive treatment areas. This transmitter allows therapeutic intervention in regions where traditional applicators would cause excessive discomfort.

Medical professionals use the ATLAS for conditions requiring gentle energy delivery, such as acute inflammation or post-surgical sensitivity.

• Applications: Highly sensitive areas, acute conditions
• Design: Silicone soft tip construction
• Penetration: 0-10mm (superficial)
• Comfort: Maximum patient tolerance



Myofascial Treatment Shockwave Transmitters

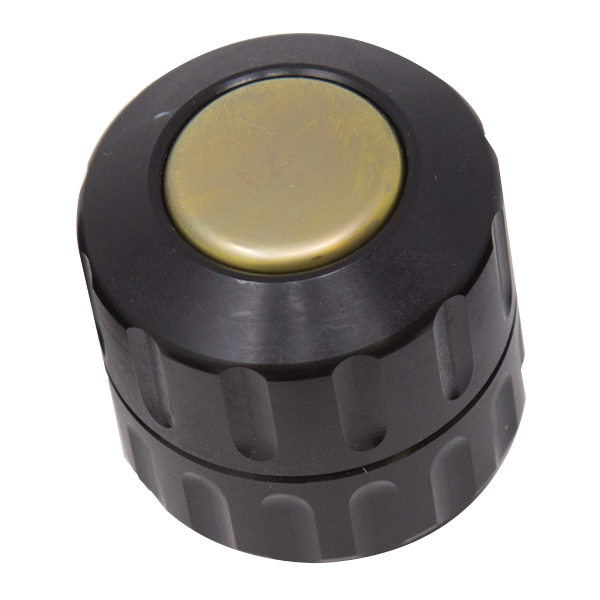

D20-S Standard Myofascial Transmitter

The D20-S provides broader energy distribution for myofascial treatments. Its 20mm diameter covers larger tissue areas while delivering moderate energy levels.

This transmitter works effectively for treating muscle groups and connective tissue regions. Many practitioners use scanning techniques with the D20-S to locate trigger points before focused treatment.

• Target: Muscle and connective tissue
• Coverage: 20mm diameter for broader treatment
• Depth: 0-50mm
• Intensity: Moderate (4/10)
• Maintenance: Replace every 1 million pulses



D20-T High-Energy Myofascial Transmitter

When standard myofascial treatment proves insufficient, the D20-T delivers increased energy output. This gold-tip transmitter provides the same 20mm coverage with enhanced power.

Professional athletic applications often require the D20-T’s higher energy levels for effective tissue mobilization and trigger point deactivation.

• Applications: High-energy myofascial work, athletic populations
• Size: 20mm diameter
• Intensity: High (8/10)
• Maintenance: Replace every 1 million pulses for optimal performance



D35-S Large Area Transmitter

The D35-S covers the largest treatment area among standard transmitters. Its 35mm diameter efficiently treats broad muscle groups and large fascial regions.

This transmitter proves valuable for treating back muscles, large leg muscle groups, and aesthetic applications requiring extensive coverage.

• Best for: Large muscle groups, broad treatment areas
• Coverage: 35mm diameter
• Penetration: 0-60mm
• Applications: Back muscles, aesthetic treatments



Specialty Storz Shockwave Transmitter Sets

PERI-ACTOR Fascial Treatment Set

Fascial dysfunction requires specialized treatment approaches beyond standard transmitters. The PERI-ACTOR system includes four specialized tools designed specifically for fascial release.

Each tool addresses different fascial treatment needs:

• Scraper: Treats all fascial structures throughout the musculoskeletal system
• Knuckle: Handles medium and large fascial areas effectively
• Sphere: Provides spot treatment for specific fascial restrictions
• Scoop: Works along bone edges and anatomical landmarks

The PERI-ACTOR system transforms fascial treatment efficiency while reducing practitioner hand strain during manual techniques.



SPINE-ACTOR Paravertebral Treatment Set

Spinal muscle dysfunction requires precise transmitter positioning to avoid direct vertebral contact. The SPINE-ACTOR series provides three specialized transmitters for paravertebral muscle treatment.

Each transmitter size addresses different spinal regions:

• SPINE-ACTOR 1 (20mm span): Cervical spine applications
• SPINE-ACTOR 2 (27.5mm span): Thoracic region treatment
• SPINE-ACTOR 3 (35mm span): Lumbar muscle groups

These transmitters allow effective paravertebral muscle treatment without risking direct bone contact, ensuring both safety and therapeutic effectiveness.



How to Select The Best Shockwave Transmitter

Matching Transmitters to Conditions

Selecting the appropriate transmitter requires understanding how different conditions respond to varying energy levels and treatment approaches.

• Acute conditions: Begin with lower-intensity transmitters (F15, ATLAS) to avoid aggravating inflammatory responses.
• Chronic conditions: Progress to higher-intensity options (DI15, C15) for breaking through established tissue restrictions.
• Sensitive patients: Always start with soft-tip transmitters regardless of chronicity.
• Athletic populations: Higher-intensity transmitters often provide better results due to tissue conditioning.



Treatment Area Considerations

Different anatomical regions require specific transmitter selection based on tissue characteristics and accessibility requirements.

• Small, precise areas: Use narrow transmitters (T10, R15) for focused energy delivery.
• Large muscle groups: Select broader transmitters (D35-S, D20-S) for efficient coverage.
• Anatomically challenging areas: Specialized transmitters (SPINE-ACTOR, PERI-ACTOR) provide optimal access.



Building Your Transmitter Collection

Strategic acquisition ensures maximum clinical versatility while managing equipment investment effectively.

Essential starter set for general practice:

• R15 (standard applications)
• F15 (sensitive areas)
• D20-S (myofascial work)
• DI15 (chronic conditions)

This combination handles approximately 80% of typical shockwave therapy applications.

Advanced practice additions:

• C15 (maximum intensity needs)
• T10 (precise trigger point work)
• ATLAS (extremely sensitive treatments)

These expand treatment capabilities for challenging cases requiring specialized approaches.

Specialized practice enhancements:

• PERI-ACTOR set (comprehensive fascial work)
• SPINE-ACTOR set (spinal applications)

These tools differentiate your practice and enable the treatment of complex conditions that other providers cannot address.

Important Compatibility Notes for Storz Applicators

Masterpuls ONE Limitations

The Storz Masterpuls ONE device accepts only specific transmitters designed for the Sparrow Handpiece:

• D20-S and D20-T myofascial transmitters
• R15 standard transmitter
• C15 ceramic transmitter
• DI15 deep impact transmitter

Other STORZ Medical devices support the complete transmitter range, providing greater treatment flexibility.

Maintenance Requirements

Certain transmitters require regular replacement:

• D20-S and D20-T: Replace every 1 million pulses
• All other transmitters: No specific replacement requirements

Regular cleaning and proper storage extend transmitter life and maintain treatment effectiveness.



How Vale Medical Supports Your Success

Vale Medical serves as the leading STORZ Medical distributor across the United States, providing comprehensive support for healthcare professionals implementing shockwave therapy.

Our commitment extends beyond equipment sales to include ongoing education, technical support, and clinical guidance. We understand that successful shockwave therapy requires both quality equipment and proper application knowledge.

Vale Medical’s experienced team helps practitioners select appropriate transmitter combinations for their specific patient populations and treatment goals. We offer training materials, clinical guidelines and follow-up to optimize the outcome of treatments.

By selecting Vale Medical to service your STORZ Medical transmitter requirements, you will be dealing with a company that is committed to your clinical success and patient care excellence. Our comprehensive inventory ensures rapid access to any transmitter required for optimal treatment delivery.

Contact Us today to discuss your transmitter needs and discover how the right equipment selection can transform your shockwave therapy results.
