»Deep« Radial Shockwave Technology

A New Standard in Radial Pressure Wave Therapy

The STORZ MEDICAL MASTERPULS® Icon sets a new benchmark for radial shockwave therapy, combining exceptional power, precision, and control in STORZ MEDICAL’s most advanced radial platform yet.

Engineered and manufactured in Switzerland, the Icon introduces a refined treatment experience built for clinicians who expect more from their technology.

Backed by years of development and 12 new patents, the MASTERPULS Icon represents a major evolution in radial shockwave technology and the new flagship platform from STORZ MEDICAL.

Get a quote today

An intensity range extended by 30 percent lets the icon reach deeper tissue layers than conventional radial systems, activating healing processes at myotendinous junctions and within scar tissue. Pressure runs from 0.1 to 5 bar eff, giving clinicians a wider working range for both superficial and deep musculoskeletal treatment.

HF Burst Mode only available on the icon, delivers a rapid sequence of high-energy pulses at 50 Hz for high-intensity treatment of muscle tension, trigger points and fascia. HF Burst Mode is designed for:

  • Faster, more efficient treatment sessions
  • Relief of muscle stiffness from overuse or stress
  • Targeted treatment of deep trigger points

Engineered for multiple grip positions with a focus on a stable power grip, the Endurance handpiece is built for full clinic days:

  • Integrated vibration absorption to reduce hand strain
  • Optimized weight distribution for precise control
  • Colored illumination displaying intensity levels
  • Patented double-valve technology for exact shockwave control

Integrated vibration therapy delivers 1–100 Hz with 5 adjustable intensity levels, giving clinicians a broad range of treatment options in a single handpiece:

  • Low frequencies (1–35 Hz): Promote relaxation and neuromuscular activation
  • Medium frequencies (36–50 Hz): Integrated vibration absorption to reduce hand strain
  • High frequencies (51–100 Hz): Override pain signals with stronger stimulation

The integrated tablet gives clinicians full control over pressure, frequency, and shock count, with built-in applicator and gel storage and smart cabling management, more organized treatment room. A complete patient management system is included.

MASTERPULS® icon Specifications at a Glance

  • Energy/Frequency Range: 0.1–5.0 bar, 1–27 Hz (HF Burst Mode: 50 Hz)
  • Dual-Valve Precision System for exact impact timing and energy delivery
  • Integrated touchscreen tablet workstation
  • Endurance® handpiece with built-in vibration absorption and colored intensity display
  • V-ACTOR® »HS« Vibration Therapy Technology (1–100 Hz, Intensity 1–5)
  • Smart applicators with RFID code recognition
  • Integrated patient management system
  • Four treatment applicators included
  • COMING SOON Global Data Network: Shared data across a global network for improved treatment protocols
View Comparison Table
MASTERPULS icon

Ready to bring Deep R-SW to your clinic?

Tell us about your practice and we'll put together pricing and package options for the MASTERPULS icon.

Get a quote today

A Closer Look at the Endurance Handpiece

Built for demanding clinical use, the Icon’s Endurance handpiece combines durability, refined ergonomics, and advanced energy control. Its balanced design and integrated vibration management help clinicians work comfortably and precisely, while patented dual-valve technology provides exceptional control over each individual shock wave.

  • Dual-Valve Precision: A patented dual-valve system independently controls the projectile's forward impact and return movement inside the guiding tube. This precise control of projectile timing and movement produces a crisp, highly controlled shock wave with accurate and consistent energy delivery.
  • Consistent Performance: By precisely managing both phases of the projectile's movement, the system supports reproducible energy delivery from pulse to pulse, giving clinicians greater control throughout treatment.
  • Ergonomic Design: Engineered to support multiple grip positions, including a stable power grip, while keeping essential controls within easy reach.
  • Enhanced Comfort: Integrated vibration absorption helps reduce hand and arm strain during intensive or extended treatment sessions.
  • Balanced Handling: Optimized weight distribution provides greater control and stability, particularly when applying higher energy levels or treating deeper tissue structures.
  • Visual Feedback: Integrated colored illumination provides an immediate indication of the selected intensity level for quick, intuitive treatment adjustments.

V-ACTOR® HS Vibration Therapy

Delivering frequencies of up to 100 Hz, the V-ACTOR® HS high-speed handpiece provides targeted vibration therapy designed to stimulate local microcirculation, support muscle relaxation, and improve tissue mobility. Its deep mechanical massage helps address muscular tension while assisting with the release of shortened or restricted fascia and muscle fibers.

Used alongside shock wave therapy, the V-ACTOR® HS helps prepare and relax surrounding tissue, making it a valuable addition to a wide range of musculoskeletal treatment protocols.

  • Low Frequencies (1–35 Hz): Gentle vibration helps promote relaxation while stimulating the neuromuscular system and supporting local metabolic activity.
  • Medium Frequencies (36–50 Hz): Provide balanced tissue stimulation and massage, helping support circulation, mobility, and muscle relaxation during treatment.
  • High Frequencies (51–100 Hz): Deliver more intensive sensory stimulation that may help influence pain perception and reduce muscular tension.
  • Integrated Handpiece Controls: Intensity and frequency can be adjusted directly from the handpiece, allowing clinicians to make quick treatment changes without interrupting the session.

Standard Radial (RPW) vs. Deep Radial Therapy

MASTERPULS icon Deep R-SW compared with standard radial shockwave therapy
Feature Standard Radial (R-SW) MASTERPULS icon (Deep R-SW)
Penetration Depth Approximately 30mm Up to 60mm
Up to 2x the depth
Intensity Range Standard pressure range 0.1 to 5 bar, with a 30% extended intensity range
30% greater range
Frequency 1 to 21 Hz 1 to 27 Hz, plus HF Burst Mode at 50 Hz
Higher frequency
Pressure at High Frequency Linked on most devices. As pressure goes up, the maximum frequency drops Full 5 bar pressure at up to 21 Hz
Max pressure and frequency together
HF Burst Mode Not available Rapid 50 Hz pulse series for intensive treatment
Deep Trigger Points Superficial trigger points Deep trigger points and acupuncture points
Deeper access
Myotendinous Junction Limited reach Designed to reach myotendinous junctions
Deep Scar Tissue Surface level Reaches deeper scar tissue layers
Extended reach
V-ACTOR Therapy Standard V-ACTOR, up to 35 Hz V-ACTOR HS, up to 100 Hz
Nearly 3x the frequency
Handpiece Standard handpiece Endurance handpiece with patented dual-valve technology. One valve drives the projectile forward and a second controls its return, for precise energy control with less vibration
Patented dual-valve
Revision Kit Lifespan Standard lifespan for wearable parts Wearable revision kit parts last twice as long
2x the lifespan
Treatment Time Standard session length Shortened treatments with HF Burst Mode
Faster sessions
Best For General MSK, soft tissue, superficial tendinopathy Deep MSK, sports rehab, stubborn trigger points, myofascial and spinal therapy

See how the icon stacks up against the full STORZ lineup

The MASTERPULS icon is the flagship of the STORZ radial range, built for clinics that want the deepest reach and the highest performance from radial shockwave. Compare it side by side with every other model.

Compare all models

What Can The Masterpuls® icon Treat?

  • Foot and Ankle
  • Lower Extremity
  • Upper Extremity
  • Back & Chest
  • Shoulder
  • Elbow
  • Neck
  • Myofascial Trigger Points

Intuitive Interface & Patient Reporting

The MASTERPULS® icon features a clear, easy-to-navigate interface that keeps essential treatment information, patient history, and reporting tools in one place.

  • Clear Treatment Overview: Key parameters including intensity, pulse rate, frequency, and treatment time are displayed prominently for quick adjustments during therapy.
  • Indication Library: Recommended treatment protocols for 18 indications can be accessed directly from the interface.
  • Patient History: Previous treatment reports are stored and organized, making it easy to review past sessions and track progress.
  • Detailed Treatment Reports: Treatment parameters, transmitters used, total treatment time, active treatment time, and changes in VAS pain scores can all be documented.

The integrated interface helps streamline treatment, simplify documentation, and provide a clear overview of each patient’s therapy history.

Iconic Treatment Applicators

An integrated RFID chip automatically recognizes the connected transmitter, ensuring correct parameter settings. The Quick Lock mechanism allows transmitters to be changed within seconds, saving time during treatment setup, workflow transitions, and cleaning.

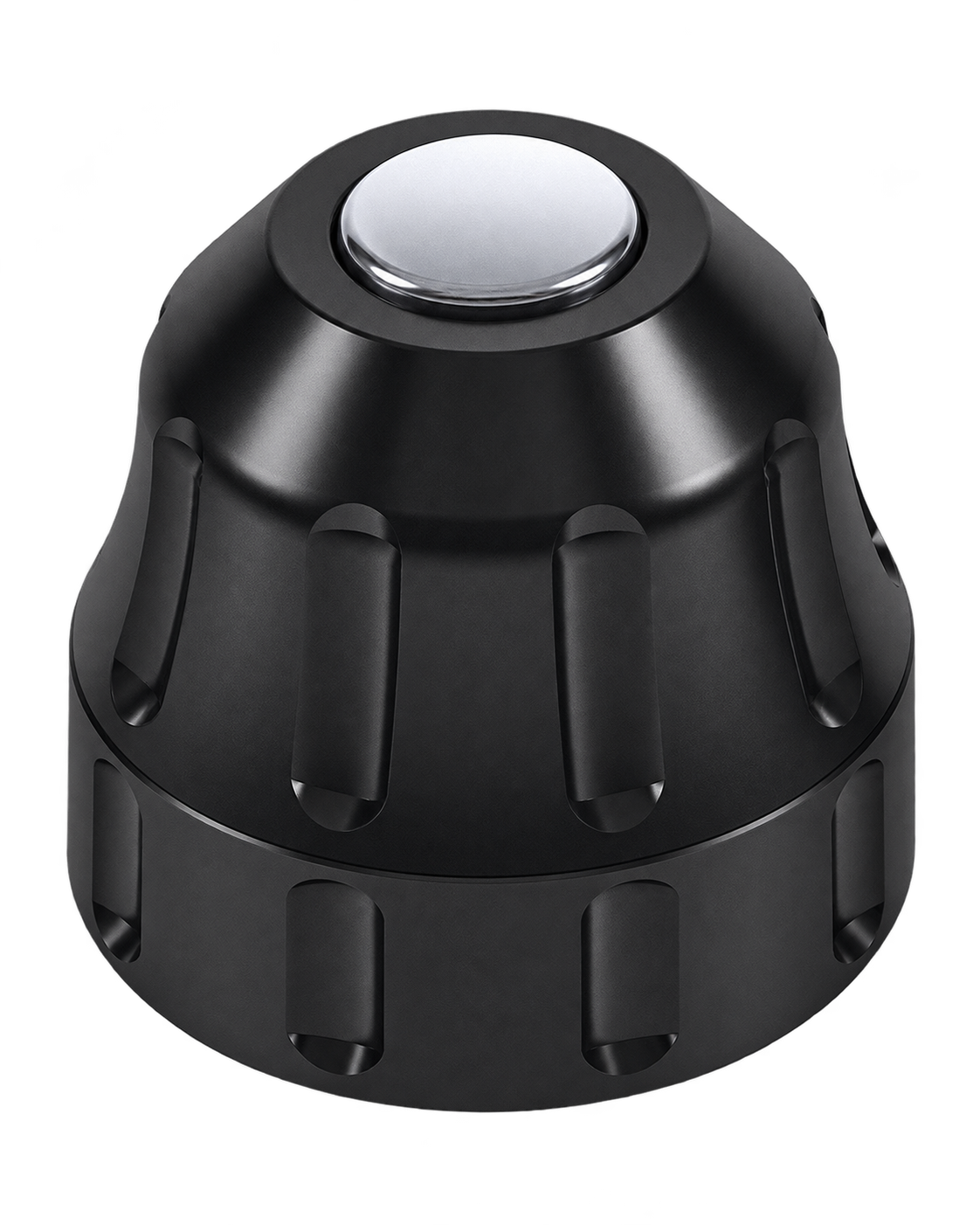

R15 »Basic Energy«

  • Used for: Any type of Enthesopathy
  • Size of Applicator: 15 mm
  • Penetration depth: 0-30 mm
  • Intensity: 6/10
  • Compatible with Burst Mode
  • *Included in the MASTERPULS® icon package

D20S »Basic Oscillator«

  • Used for: Large treatment surfaces, muscle and connective tissue
  • Size of Applicator: 20 mm
  • Penetration depth: 0-50 mm
  • Intensity: 4/10
  • Compatible with Burst Mode
  • *Included in the MASTERPULS® icon package

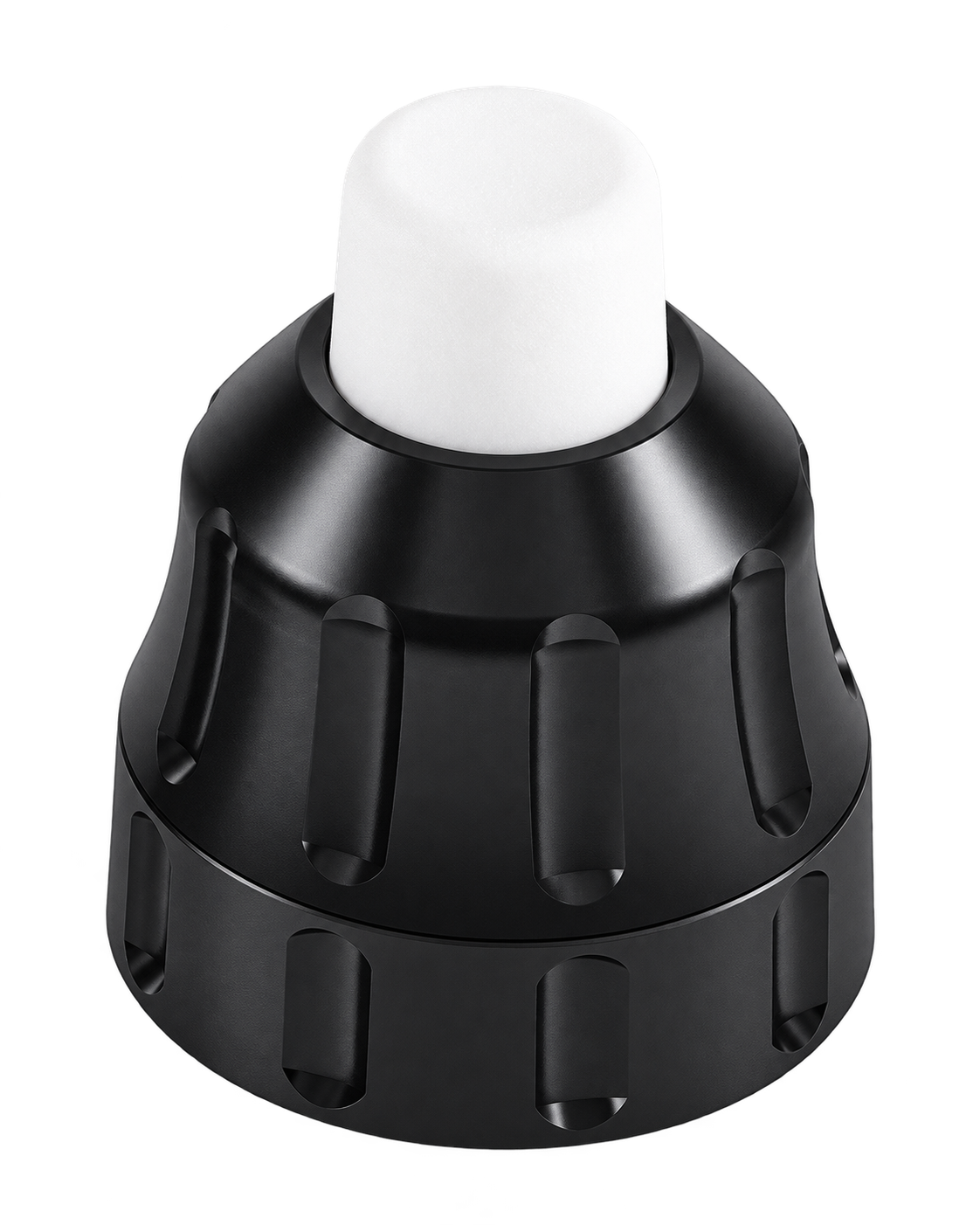

CC »Comfort Care«

  • Used for: Highly sensitive regions and trigger points in the cervical spine muscles
  • Size of Applicator: 15 mm (Silicone)
  • Penetration depth: 0-10 mm
  • Intensity: 1/10
  • Compatible with Burst Mode
  • *Included in the MASTERPULS® icon package

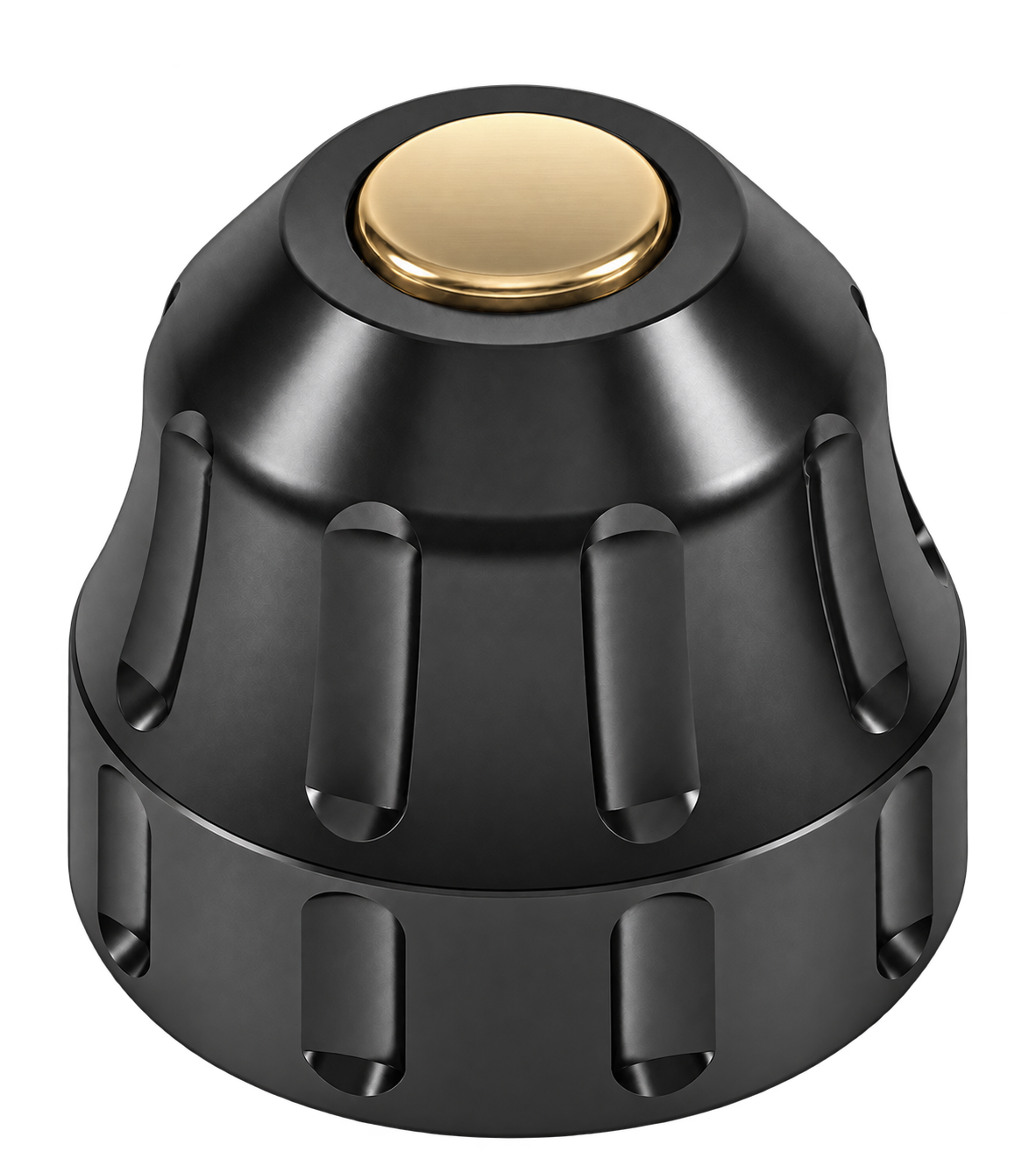

DI15 »Deep Impact«

  • Used for: Deep targeted areas, chronic conditions, high-energy applications
  • Size of Applicator: 15 mm (Titanium)
  • Penetration depth: Depth 0-50 mm
  • Intensity: 8/10
  • *Included in the MASTERPULS® icon package

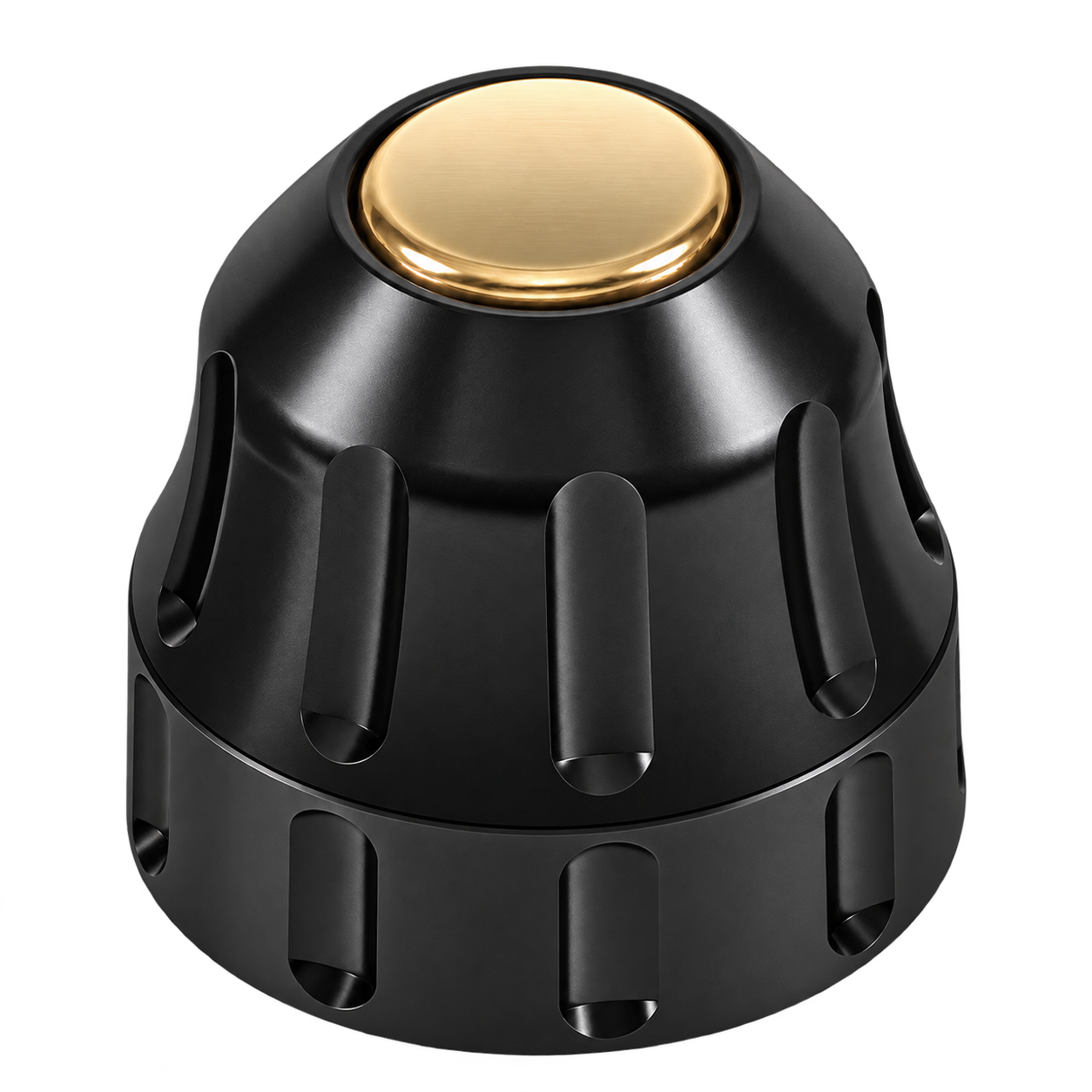

D20-T »Golden Oscillator«

  • Used for: Higher-energy applications, including treatment of professional athletes
  • Size of Applicator: 20 mm (Titanium)
  • Penetration depth: 0-50 mm
  • Intensity: 8/10
  • Can be purchased separately

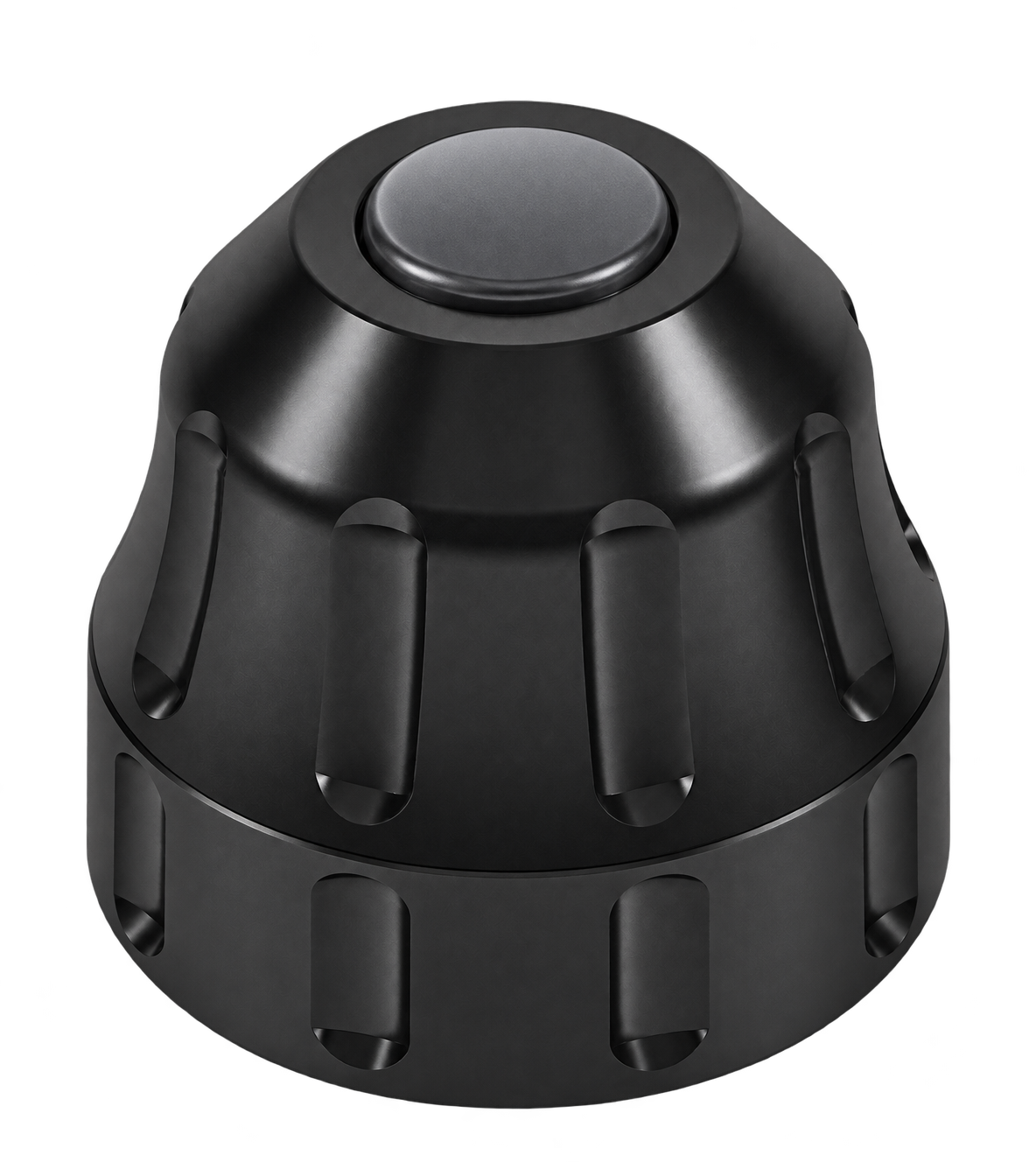

C15 »CERAma-x«

  • Used for: Any type of Enthesopathy
  • Size of Applicator: 15 mm (Ceramic)
  • Penetration depth: 0-30 mm
  • Intensity: 9/10
  • Can be purchased separately
